ALA-PR-0023
Recessed Invisible-Graphic Exit Sign
Recessed exit lighting with an invisible-graphic option for dementia-style environments. Confirm the configuration and project suitability before ordering.
Build your quote
Select your option and quantity. You can add more products before sending your request.
Availability and lead time are confirmed with your quotation. Product suitability depends on the application, installation and project risk assessment.
Product documentation
Need a datasheet, installation guide or manufacturer test information? Include this in your quote request and we will confirm what is available.
Product details

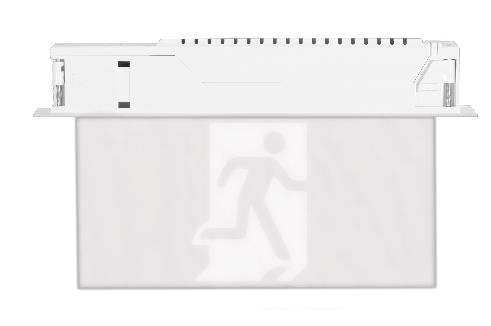

A recessed exit sign with an invisible graphic blade and low-intensity charge LED. The image shows the blade activated. In non-maintained operation, the exit graphic becomes visible when activated. The supplied documentation identifies dementia-style environments as the primary application; this product is not necessarily suitable for areas requiring higher security. Confirm project suitability and the current configuration before ordering. The supplied datasheet lists AS/NZS 2293.3 with an exception concerning the EXIT decal and records the AS2293 classification as N/A. Review this exception with your project specifier. Original technical documentation is available on request. The testing feature is enabled but not activated by default. The low-intensity charge LED prevents phone-app scanning. Specifications are from the supplied March 2023–24 datasheet; confirm the latest documentation when ordering.
Specifications
- Supply
- 240 V AC, 50 Hz
- Weight
- 1.1 kg
- Battery
- Lithium Nanophosphate, 3.3 V, 2500 mAh
- Mounting
- Recessed ceiling
- IP rating
- IP20
- Dimensions
- 317 × 8.7 × 157 mm
- Application
- Dementia-style environments; confirm project suitability
- Operating mode
- Non-maintained
- Body / diffuser
- PC/ABS / polycarbonate
- Ceiling cut-out
- 350 × 48 mm
- Viewing distance
- 24 m
- Power consumption
- 1.1 W standby; 3.4 W maximum
- AS2293 classification
- N/A in supplied datasheet
- Minimum ceiling depth
- 80 mm
- Operating temperature
- 1–40°C
- Standards listed in datasheet
- AS/NZS 3820; CISPR 15; AS/NZS 2293.3 with exception of EXIT decal
